TheKazakh Drama Theaterin Astana is a beacon of artistic excellence, renowned for its sophisticated productions. To support its ambitious performances, the theater required an infrastructure upgrade capable of handling complex audiovisual demands.

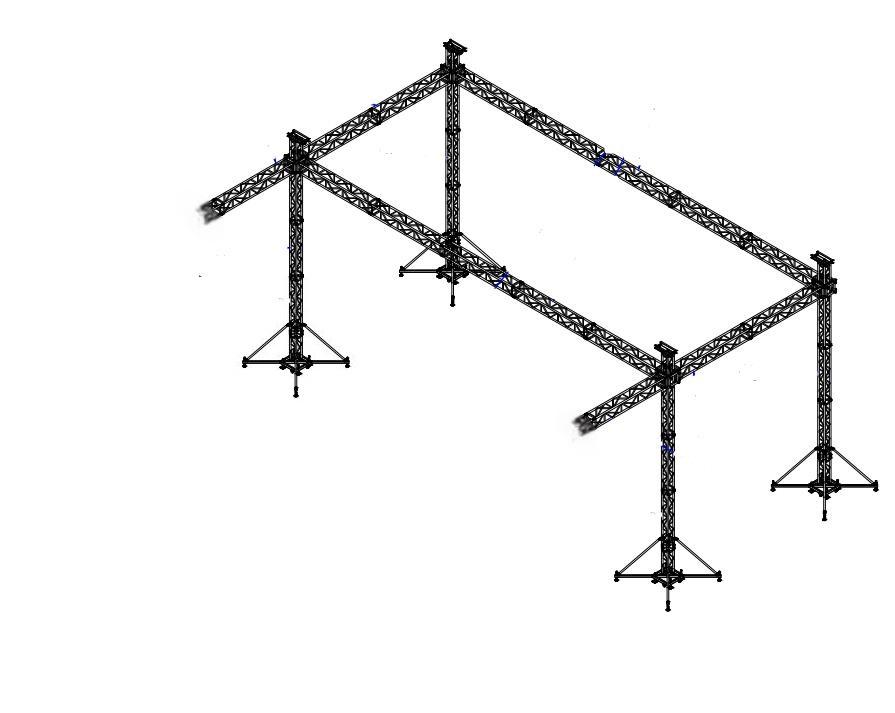

This case study analyzes the custom-engineeredlighting truss framesolution designed specifically for the theater's needs. We examine how this 10-meter span structure balances structural integrity with creative flexibility to enhance the theatrical experience.
This project demanded a framework that was not only robust but also versatile enough to support a heavy load of lighting fixtures and professional audio equipment.
Project Location:Kazakh Drama Theater, Astana
Truss Span (Width):10 Meters
Frame Height:5 Meters
Frame Depth:2 Meters
Integrated Feature:Dedicated 1-Meter Speaker Truss
Material:High-grade Aluminum Alloy (Engineered for high load-bearing capacity)
At the core of this system is the10-meter span. Spanning such a width requires precision engineering to prevent deflection (sagging). The structure utilizes a network of interconnected triangular units, a geometry chosen for its ability to distribute weight evenly.
Load Capacity:Designed to safely support extensive lighting rigs, cabling, and sound systems.
Stability:The rigid geometry ensures the safety of performers and technicians, meeting strict theater safety regulations.
Unlike standard flat trusses, this custom frame features a substantial2-meter depth. This three-dimensional footprint offers distinct advantages for lighting designers:
Layering:Allows for the positioning of wash lights and spots at different depths, creating texture and shadow on stage.
Cable Management:Provides ample internal space to route power and data cables, keeping the visible stage area clean and clutter-free.
A unique requirement for this project was the seamless integration of audio. A dedicated1-meter speaker trusswas incorporated into the main structure.
All-in-One Solution:Eliminates the need for separate speaker stands, reducing the equipment footprint.
Acoustic Optimization:Provides a stable, vibration-free platform for line arrays or point-source speakers, ensuring clear sound distribution to the audience.
The5-meter heightgives the production team significant vertical leverage. This height is optimal for establishing dramatic lighting angles—from steep top-lighting to broad washes—enhancing the visual storytelling of every performance.
Beyond functionality, this truss system prioritizes the well-being of the crew and the environment.
Certified Safety:The materials and welds undergo rigorous testing to ensure they meet international load-bearing standards. Features include secure locking mechanisms and reinforced corners.
Eco-Friendly Construction:Crafted from recyclable aluminum, the frame aligns with modern sustainable practices, offering durability without a heavy environmental footprint.
The custom lighting truss frame for the Kazakh Drama Theater is more than just a support structure; it is a foundational element of the theater's artistic capability. By combining a10m span, integrated audio support, and a heavy-duty profile, this solution empowers designers to push the boundaries of visual and auditory performance.
